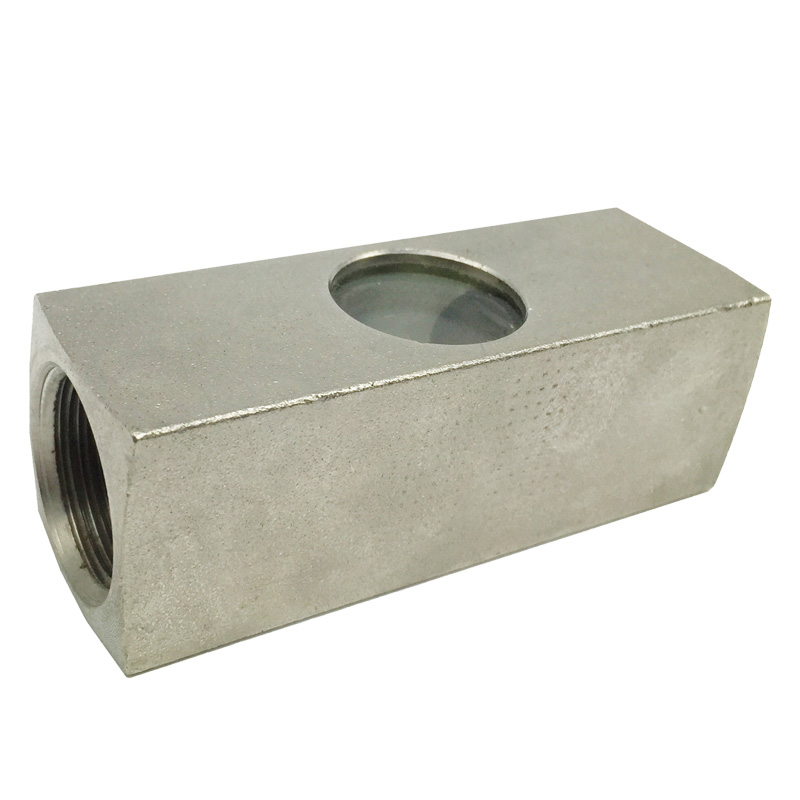

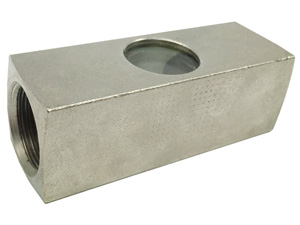

Square Fused Sight Glass

  • Working pressure: 1200 PSI
  • Max. operating temperature up to 500 °F (260 °C)
  • Steel construction with Nickel plated surface
  • Fuses a glass lens inside of a metal housing
KCSGM-50 Fused Sight Glass
  • KCSGM-50 Fused Sight Glass
  • KCSGM-50 Fused Sight Glass
  • KCSGM-50 Fused Sight Glass
KCSGM-25 Fused Sight Glass
  • KCSGM-25 Fused Sight Glass
  • KCSGM-25 Fused Sight Glass
  • KCSGM-25 Fused Sight Glass

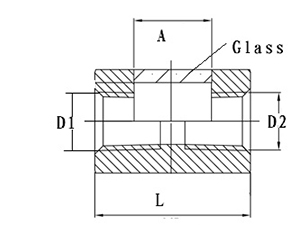

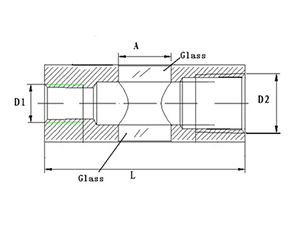

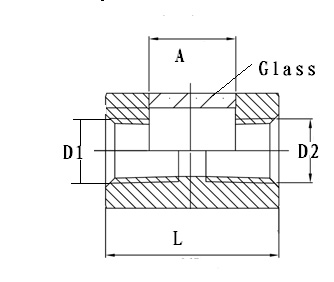

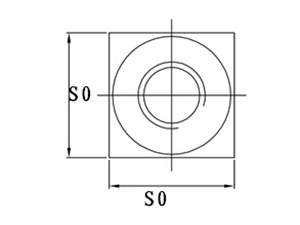

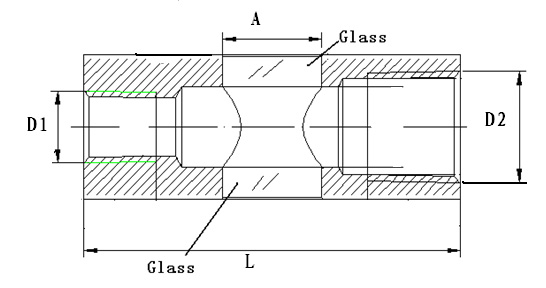

Inch/Metric (mm)
Item # L A D1 D2 S0
KCSGM-25 1.5"(38.10) 0.75"(19.05) 1/4" 1/4" 1"
KCSGM-50 2.87"(72.90) 0.75"(19.05) 1/4" 1/2" 1"
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
Tags
Plumbing accessories Pipe fittings plumbing products Sight glass manufacturer High pressure windows Full view sight glass
Products List
Related Products

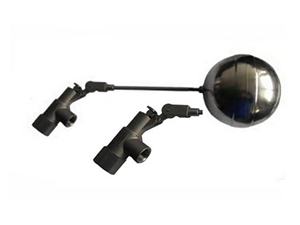

    1. B Type Stainless Steel Float Ball Valve
    2. B Type Stainless Steel Float Ball Valve

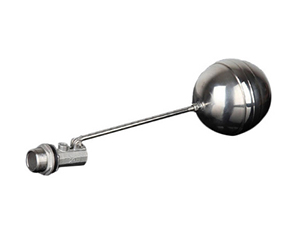

    1. Stainless Steel Floating Ball Valve
    2. Stainless Steel Floating Ball Valve

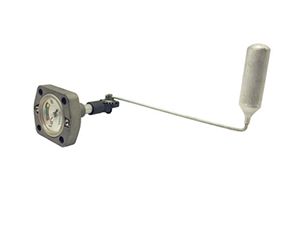

    1. Float Ball Type Liquid-Level Gauge
    2. Float Ball Type Liquid-Level Gauge

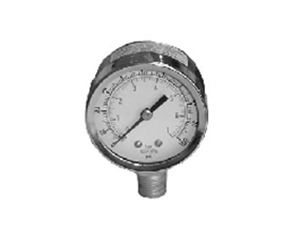

    1. Pressure Gauges
