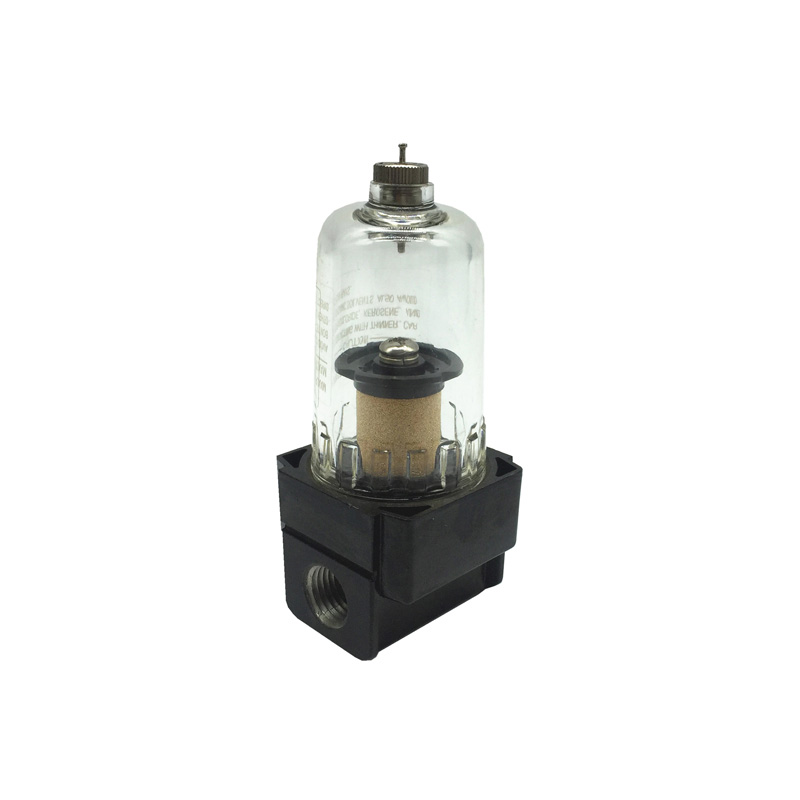

Miniature Air Filter
- Rated inlet pressure up to 140 PSI (10 bar)
- Ambient and fluid temperature: 41 °F to 140 °F (5 °C to 60 °C）
- Filtration efficiency: 25 μm (5,50 μm available upon request)
- Flow Capacity: See Below, at 0.7Mpa Pressure
- See below for flow capacity at 0.7Mpa
- Port threads: NPT, PT, or BSPP
- Filter material: brass
- Optional auto drain or manual drain
- Bowl material: Polycarbonate (with steel protective cover on APFS30-25 To APFL50-1)
| Item # | Port Size | Bowl Capacity | Flow Capacity(L/min) | Auto Drain Type |
| APFM20-12 | 1/8 | 15 | 750 | Lever Type Auto Drain
|
| APFM20-25 | 1/4 |
| APFS30-25 | 1/4 | 20 | 1500 |
| APFS30-33 | 3/8 |
| APFL40-33 | 3/8 | 45 | 4000 |
| APFL40-50 | 1/2 |
| APFL40-75 | 3/4 | 6000 |
| APFL50-75 | 3/4 | 130 | 7000 |
| APFL50-1 | 1 |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
