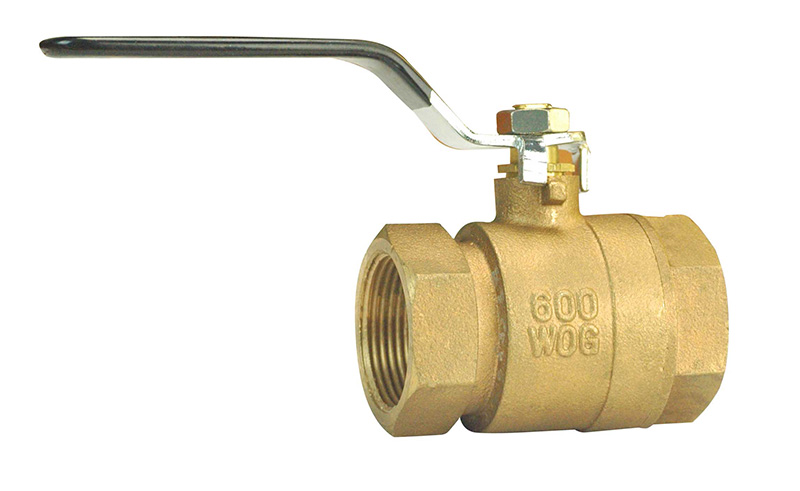

Bronze Ball Valve
- Working pressure: 600 PSI
- WSP Rating: 150 PSI
- Temperature range: -20 ° F to +365 ° F (-30 ℃ to +185 ℃)
- Cast Bronze Body and Cap
- Suitable for vacuum service up to29” Hg

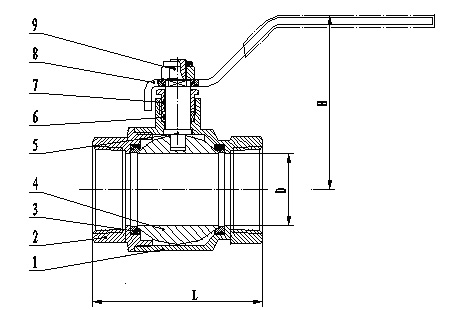

| Part # | Part Name | Material |
| 1 | Body | Bronze |
| 2 | Cap | Bronze |
| 3 | Seat | PTFE |
| 4 | Ball | Chrome plated Brass |
| 5 | Stem | Brass |
| 6 | Stem Packing | PTFE |
| 7 | Gland Bonnet | Brass |
| 8 | Handle | Steel |
| 9 | Nut | Steel |
Inch/Metric(mm)
| Item # | Size | L | D | H |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| BZV25 | 1/4" | 6.35 | 1.70 | 43.18 | 0.31 | 7.87 | 1.77 | 44.96 |
| BZV33 | 3/8" | 9.525 | 1.80 | 45.72 | 0.39 | 9.91 | 1.77 | 44.96 |
| BZV50 | 1/2" | 12.7 | 2.10 | 53.34 | 0.51 | 12.95 | 1.88 | 47.75 |
| BZV75 | 3/4" | 19.05 | 2.50 | 63.50 | 0.74 | 18.80 | 2.16 | 54.86 |
| BZV100 | 1" | 25.4 | 2.95 | 74.93 | 0.98 | 24.89 | 2.55 | 64.77 |
| BZV120 | 1-1/4" | 31.75 | 3.42 | 86.87 | 1.25 | 31.75 | 2.99 | 75.95 |
| BZV150 | 1-1/2" | 38.1 | 3.70 | 93.98 | 1.57 | 39.88 | 3.77 | 95.76 |
| BZV200 | 2" | 50.8 | 4.33 | 109.98 | 1.88 | 47.75 | 3.77 | 95.76 |
