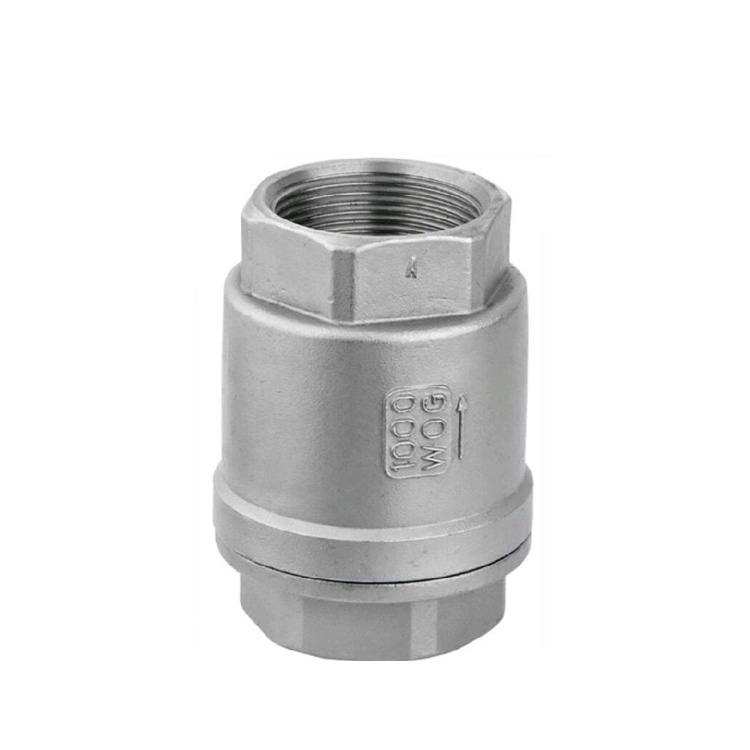

2 Piece Stainless Steel Spring Check Valve

  • 2 Piece Stainless Steel Spring Check Valve
Inquiry
  • Working pressure: 230psi
  • Temperature range: -20 to 210℃
  • Body: 304 stainless steel
  • Threaded ends: BSPT, BSP, NPT
Specifications
Item# Size DN D E L S Weight
Inch mm Inch mm Inch mm Inch mm Inch mm Kg
1/4” 0.31 8 0.41 10.5 1.24 31.5 1.97 50 0.83 21 0.141
3/8” 0.39 10 0.45 11.5 1.24 31.5 2.05 52 0.83 21 0.13
1/2” 0.59 15 0.59 15 1.42 36 2.28 58 0.98 25 0.163
3/4” 0.79 20 0.79 20 1.65 42 2.64 67 1.22 31 0.286
1” 0.98 25 0.98 25 1.93 49 3.07 78 1.50 38 0.437
1-1/4” 1.26 32 1.26 32 2.28 58 3.62 92 1.89 48 0.725
1-1/2” 1.57 40 1.50 38 2.83 72 3.90 99 2.20 56 1.014
2 1.97 50 1.97 50 3.23 82 4.69 119 2.68 68 1.577
  • 2 Piece Stainless Steel Spring Check Valve
    • Part # Part Name Material
    1 Body CF8/CF8M 304/316
    2 Spring 304
    3 Disc PTFE
    4 Cap CF8/CF8M 304/316
    5 Joint Gasket 304
    Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
